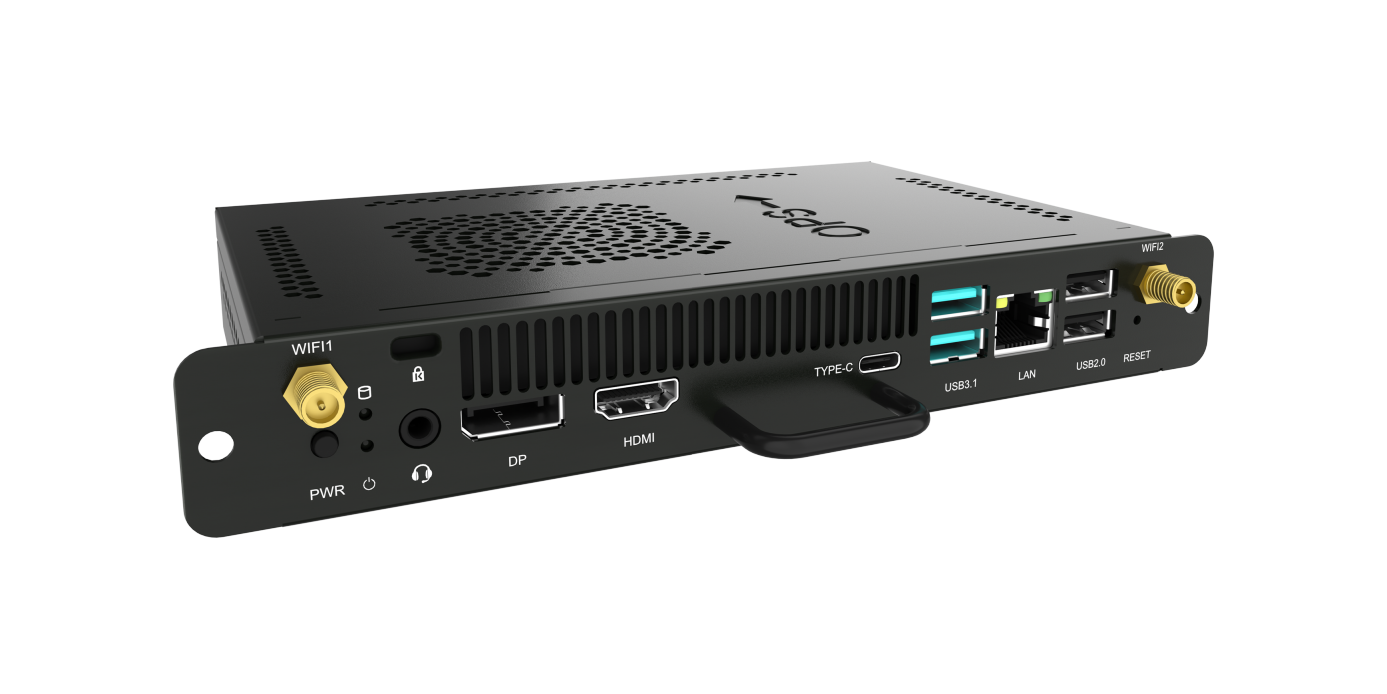

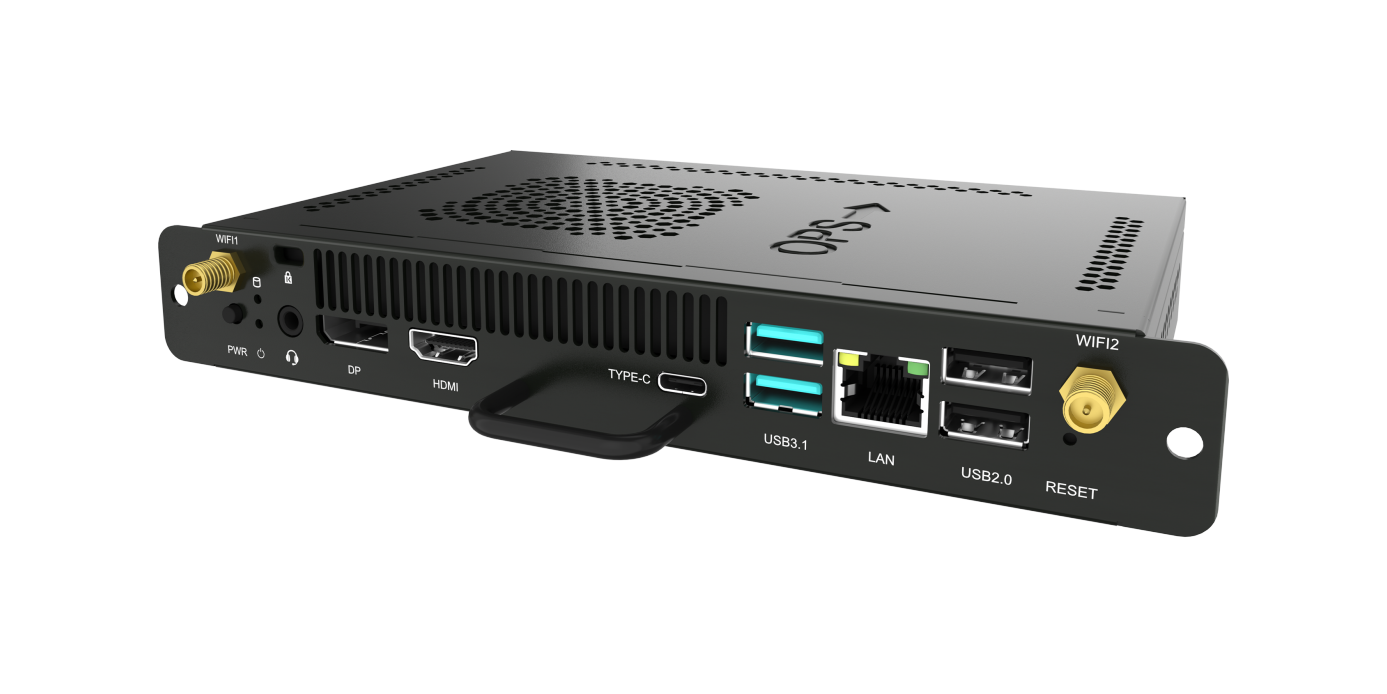

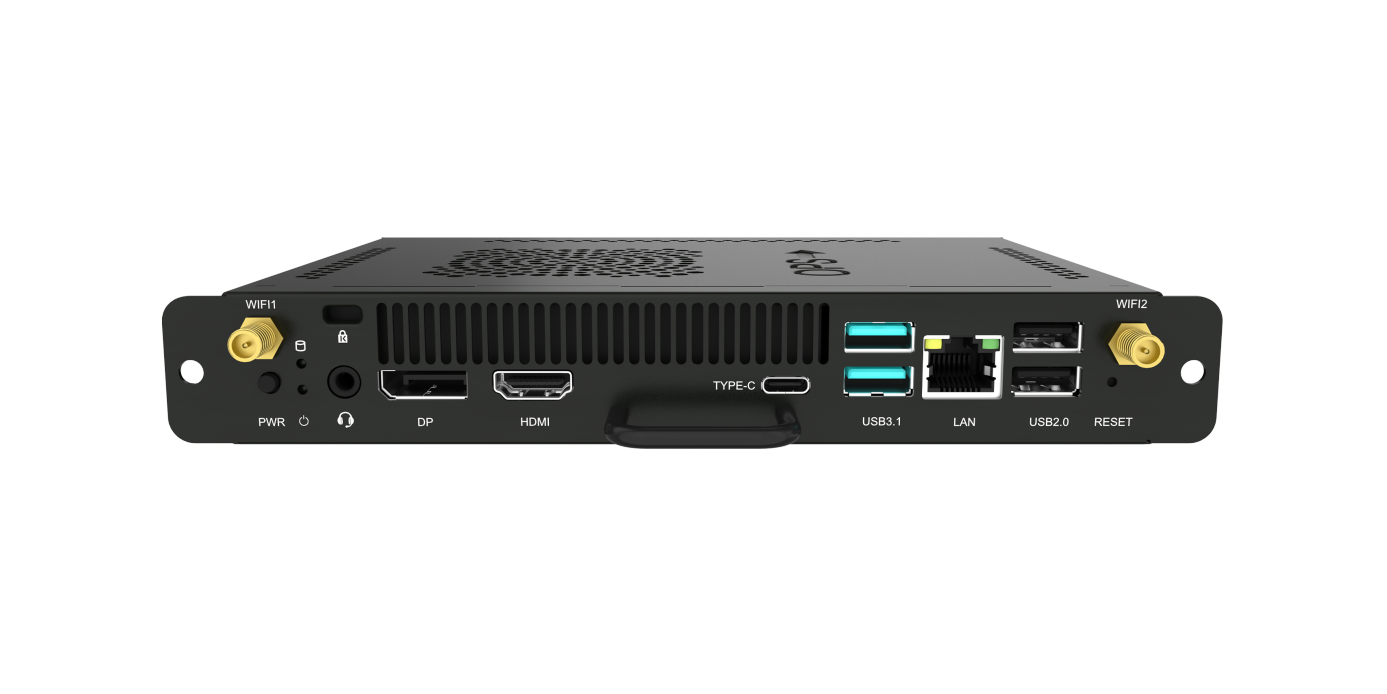

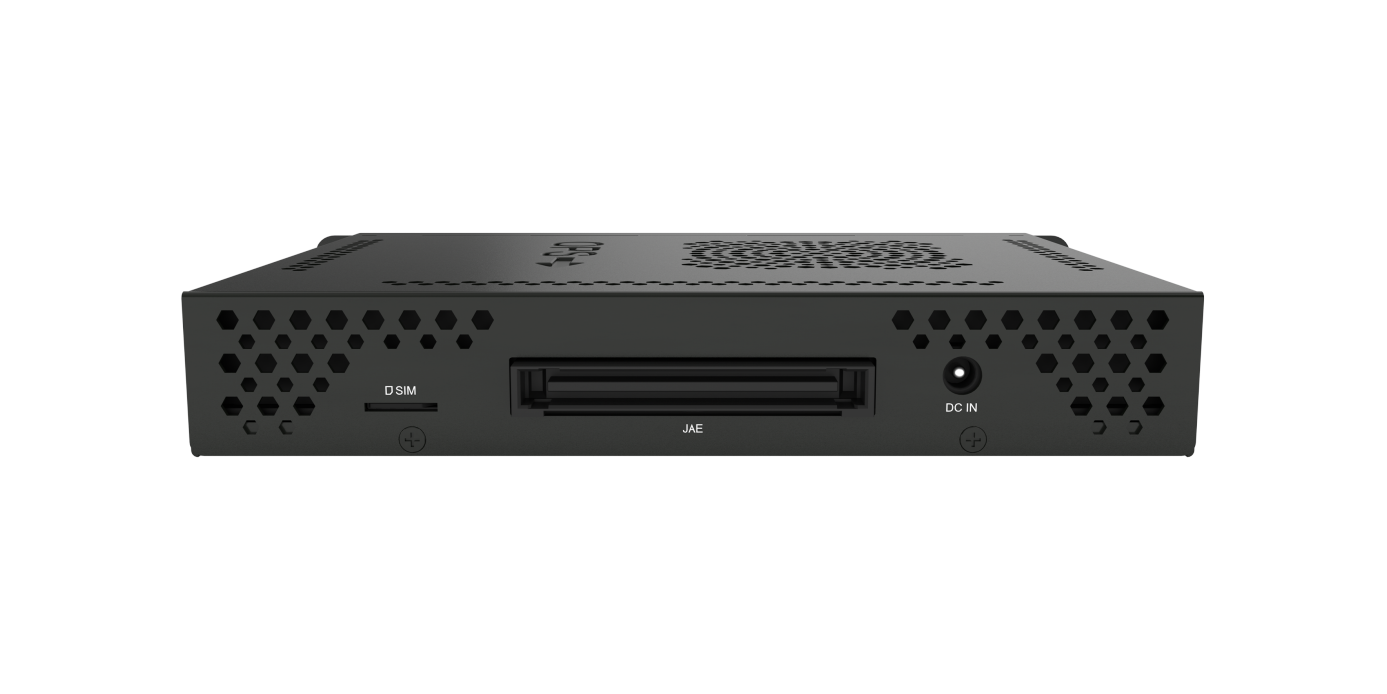

S104CPLUS
½ÓÄÉIntel Raptor Lake-P ƽ̨Éè¼Æ£¬´îÔØIntel Iris Xe Graphics ÐÔÄÜ£¬²Î¿¼±ê×¼OPS±ê×¼£¬¿ÉÇáËÉ×°Öá¢Éý¼¶²¢Î¬³Ö£¬ÊǾۻá½â¾ö¼Æ»®¡¢½ÌÓýºÍÊý×Ö±êÅÆÓ¦ÓõÄÀíÏëÑ¡Ôñ¡£
- ?
- Ö§³ÖIntel Raptor Lake-P ƽ̨´¦Öóͷ£Æ÷
- ?
- ˫ͨµÀ SoDIMM DDR4ÄÚ´æ
- ?
- 1 x M.2 Key M 2280 size for NVMe/SATA SSD
- ?
- 2 x USB2.0, 2 x USB3.1, 1 x Type-C
- ?
- ÏÔʾ£º1 x HDMI1.4, 1 x DP1.4, HDMI2.0 + DP1.4(80pin)
- ?
- Ö§³Ö WIFI6, Mini PCIe or CNVi ½Ó¿Ú
- ?
- Ö§³Ö 1000M ÒÔÌ«Íø RJ45 ½Ó¿Ú
- ?
- Ö§³ÖTPMÇå¾²¼ÓÃÜÄ£¿é
CPU | CPU | Intel? Raptor Lake-P Processor |
TDP | 28W | |
Display | Graphic card | Intel? Iris? Xe Graphics |
Multi displays | 3 simultaneous 3 displays | |
Interface | 2 x HDMI1.4, 1 x 80PIN£¨1 x HDMI2.0 4K60Hz) | |
Network | Lan IC | 1 x Realtek 8111H Co-Lay Intel Ethernet Connection I226LM |
Lan Interface | 10/100/1000Mbps | |
Lan Connector | 1 x RJ45 Port | |
Wireless Type | WIFI_BT module | |
Wireless Interface | 1 x M.2 2230 slot for WIFI_BT module | |
4G/5G | Optional | |
I/O interface | Display | 2 x HDMI1.4 (4K@30Hz) Or One Can chose HDMI IN ; |
USB | 2* x USB3.0,2* x USB3.1 ,1 x Type-c(USB3.2 date ) | |
Button | 1 x PowerButton, 1 x Clear CMOS Key | |
Slot | 1 x SIM Card Slot (Optional) | |
AUDIO | 1 x Line Out ; 1 x MIC-In | |
POWER | 1 x RJ45 | |
JAE | 1 x 2.5/5.5 DC-IN Connector | |
System | Memory | Dual channel SO-DIMM DDR5-4800MHz MAX 32G |
Storage | 1 x KeyM M.2 2280 NVMe/SATA SSD 1 x KeyB M.2 2242 SATA SSD | |
OS | Windows11/Linux | |
WatchDog | Support | |
Auto Power On | Suppoer | |
RTC | Support | |
Power Input | 12~19V DC IN, 2.5/5.5 DC Jack & JAE 80p | |
Dimension | 119mm(L) x 180mm(W) x 30mm(H) | |
Operating Temp. | -5~45¡æ | |
Operating Humidity | 10%~90% non-condensing | |
Storage Temp | -20~70¡æ | |
Operating Humidity | 10%~90% non-condensing |
